Microgrid Resilience Is Changing Transformer and Switchgear Design Priorities

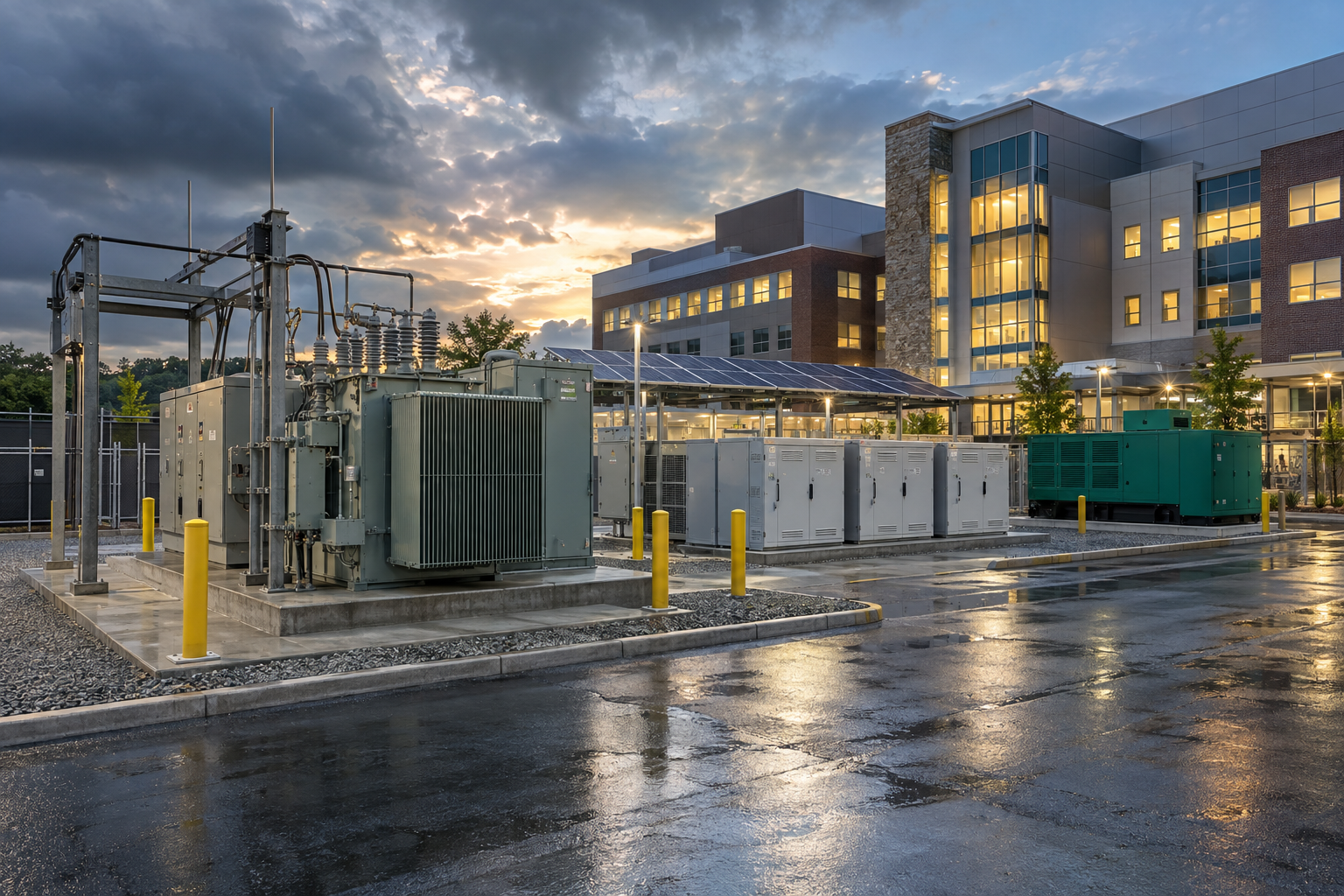

Microgrids are gaining attention as utilities, communities and industrial sites look for ways to maintain critical services during wider grid disturbances. A June 2026 U.S. Department of Energy article highlights how microgrids can reduce expected energy not served by operating in island mode when the main grid is unavailable.

The resilience benefit depends on more than adding local generation or battery storage. Transformers, switchgear, grounding, protection and controls must work correctly in both grid-connected and islanded conditions.

Two Operating Modes, One Coordinated Electrical System

When connected to the utility, the microgrid may import power, export power or balance local generation and load. During an outage, an isolation device separates the site and the local system must establish voltage and frequency, energise transformers safely and keep priority loads within the available generation capacity.

Fault current can be substantially different in island mode, particularly when inverter-based resources are the main source. Protection settings that work with the utility contribution may not provide the same sensitivity or selectivity after islanding. This is why the operating philosophy must be defined before transformers and switchgear are finalised.

Key Design Questions for Microgrid Equipment

1. What loads are critical? Separate essential, controllable and non-essential loads, then define the sequence for load shedding and restoration.
2. Who establishes voltage and frequency? Confirm the grid-forming source and its capability to energise transformer magnetising current and start large motors.
3. How is neutral grounding maintained? Review the grounding path in every switching state to avoid an ungrounded or incorrectly grounded island.
4. Can power flow in both directions? Verify transformer connections, tap settings, protection and metering for import and export operation.
5. How will the system resynchronise? Define voltage, frequency and phase-angle checks before reconnecting to the utility.
6. What happens after a black start? Test the energisation sequence, cold-load pickup, transformer inrush and recovery of control power.

Transformer Selection for Resilient Sites

Transformer capacity should reflect both normal operation and the islanded load plan. A unit may be lightly loaded most of the year but still need sufficient short-term capability for motor starting or restoration. Harmonics from inverters, high ambient temperature, enclosure requirements and acoustic limits also influence the design.

Where a microgrid supplies hospitals, communications, water systems or continuous industrial processes, monitoring and maintainability become especially important. Temperature indicators, alarms, spare-parts strategy and access for replacement should be included in the resilience study rather than treated as separate procurement topics.

Protection Testing Is Part of Resilience

A design is not complete until operating modes are tested. Functional tests should cover loss of utility supply, transfer to island mode, load shedding, restoration, resynchronisation and communication failures. Settings and interlocks must be documented so that future equipment changes do not undermine the protection scheme.
