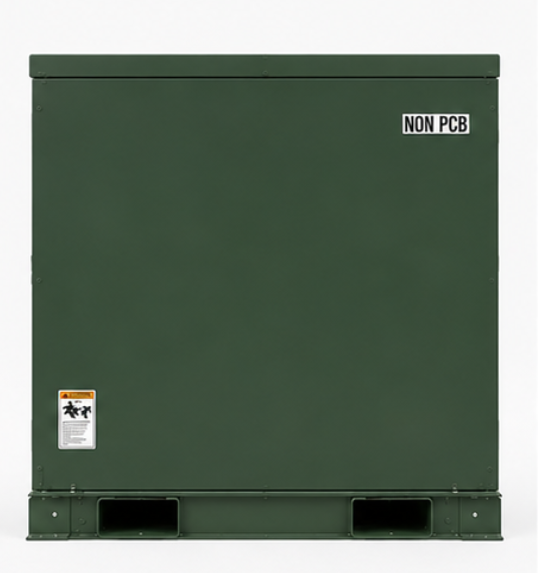

Pad Mounted ZGS Series II Three Phase Oil Immersed Transformer

2026年6月26日High Voltage Product 1070

Available Certifications CE / UL Availability depends on model and configuration.

Overview

Pad Mounted ZGS Series II Three Phase Oil Immersed Transformer is a high-voltage class three-phase pad mounted distribution transformer designed for outdoor power distribution systems. It is mainly used to step down medium-voltage power from utility distribution networks to low-voltage power for industrial facilities, commercial complexes, infrastructure projects, renewable energy systems, utility distribution areas, and large outdoor electrical networks.

Product Advantages

UL Listed Transformer for International ProjectsThe ZGS Series II Three Phase Transformer is included in the UL certified oil transformer product list.

Higher Voltage Coverage from 26kV to 36kVThis product is designed for higher-voltage distribution networks, with high-voltage coverage from 26kV to 36kV.

High Capacity up to 5000kVAWith capacity coverage up to 5000kVA, the transformer can support large three-phase loads.

Reliable Three-Phase Power DistributionThe transformer is designed for three-phase power systems and can supply stable power to motors, pumps, HVAC systems, production equipment, building electrical systems, charging infrastructure, auxiliary systems, and distribution networks.

Typical Specifications

Phase	Three phase
Installation Type	Ground-mounted / pad-mounted outdoor installation
Capacity Coverage	Max 5000kVA
High Voltage Coverage	26kV–36kV
Cooling / Insulation Medium	Transformer oil
Reference Standards	IEEE C57.12.00, IEEE C57.12.28, IEEE C57.12.90, etc.

Typical configuration only. Final ratings are confirmed against project requirements.

Applications

Pad Mounted ZGS Series II Three Phase Oil Immersed Transformer is suitable for higher-voltage three-phase power distribution systems. It is widely used in projects that require outdoor installation, high capacity, reliable voltage transformation, and safe integration into medium-voltage distribution networks.
