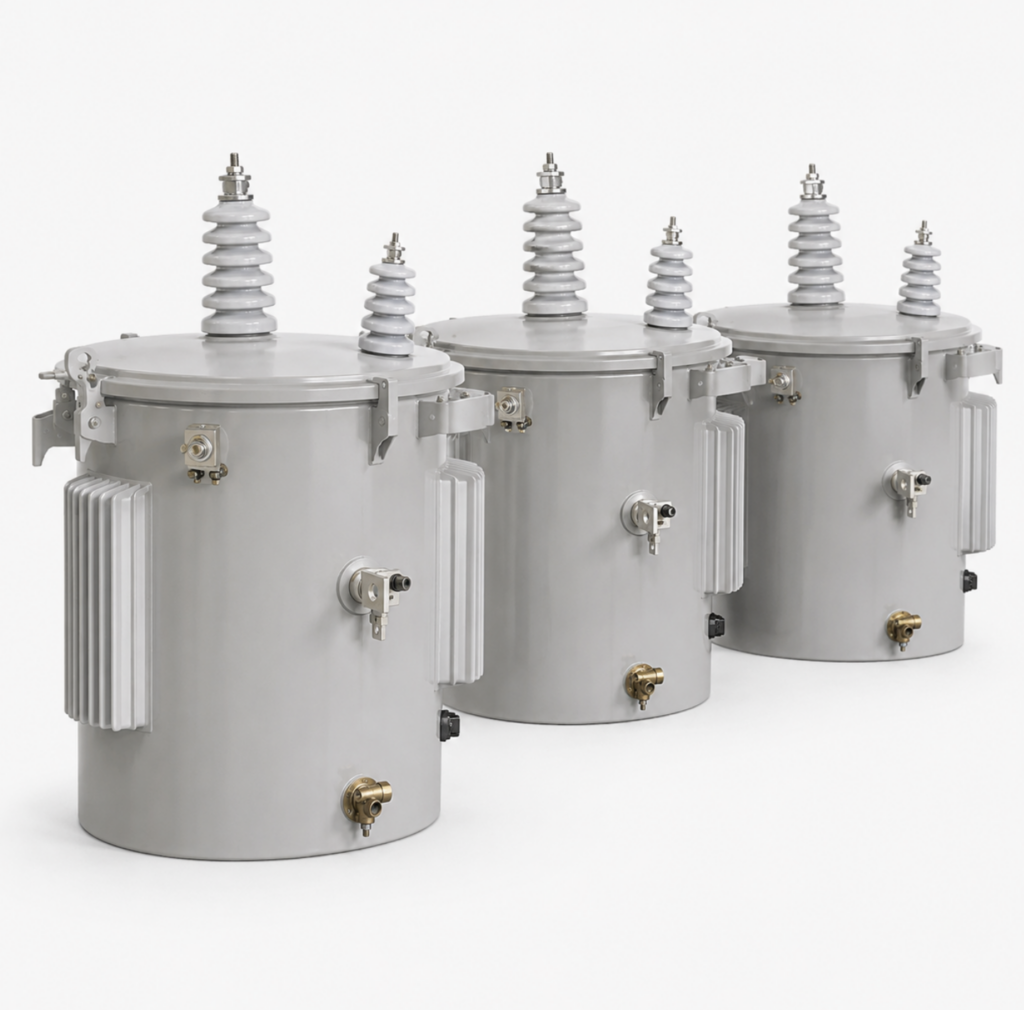

Overhead D Series Single Phase Oil Immersed Transformer

2026年6月26日High Voltage Product 1010

Available Certifications CE / UL Availability depends on model and configuration.

Overview

Overhead D Series Single Phase Oil Immersed Transformer is a pole-mounted distribution transformer designed for single-phase power distribution networks. It is mainly used to step down medium-voltage power from overhead distribution lines to low-voltage power for residential users, rural power networks, small commercial facilities, farms, public facilities, and utility distribution systems.

Product Advantages

UL Listed Product for International ProjectsThe Overhead D Series Single Phase Transformer is included in the UL certified oil transformer product list.

Suitable for Overhead Distribution NetworksThis transformer is designed for pole-mounted installation and overhead distribution systems.

Single-Phase Power Distribution SolutionThe product is suitable for single-phase power supply applications.

Oil Immersed Cooling and InsulationThe transformer uses oil as the cooling and insulation medium.

Typical Specifications

Phase	Single phase
Installation Type	Pole-mounted / overhead installation
Capacity Coverage	Max 333kVA
High Voltage Coverage	11kV–17kV
Cooling / Insulation Medium	Transformer oil
Reference Standards	IEEE C57.12.00, IEEE C57.12.28, IEEE C57.12.90, etc.

Typical configuration only. Final ratings are confirmed against project requirements.

Applications

Overhead D Series Single Phase Oil Immersed Transformer is widely used in overhead power distribution networks. It is an important product for converting medium-voltage electricity into low-voltage electricity for end users in single-phase distribution systems.

LAST: MV Mold TransformerNEXT: Pad Mounted ZGD Series Single Phase Oil Immersed Transformer

Related recommendations

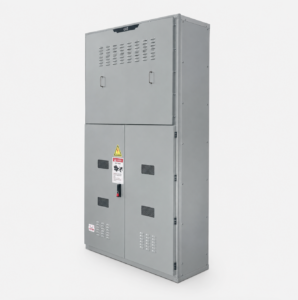

MV Mold Transformer
2026年6月26日 72
MV Mold Transformer, also known as a Medium Voltage Cast Resin Dry-Type Transformer, is an essential power distribution device used to convert medium-voltage electrical power into low-voltage power for downstream distribution systems. It is commo...
View details
72.5kV SF6 Dead Tank Circuit Breaker
2026年8月20日 62
A compact high-voltage switching solution for reliable interruption and protection in outdoor substations. The 72.5kV SF6 dead tank circuit breaker is designed for controlled switching and fault interruption in outdoor substations. Its grounded ta...
View details

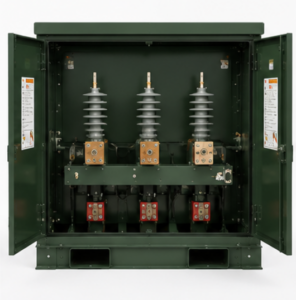

Pad Mounted ZGS Series I Three Phase Oil Immersed Transformer
2026年6月26日 86
Pad Mounted ZGS Series I Three Phase Oil Immersed Transformer is a three-phase ground-mounted distribution transformer designed for medium-voltage power distribution systems. It is mainly used to step down medium-voltage electricity from utility ...
View details

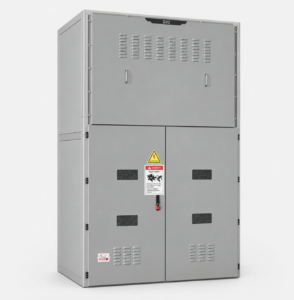

MV LIS ≤15kV Medium Voltage Load Interrupter Switchgear
