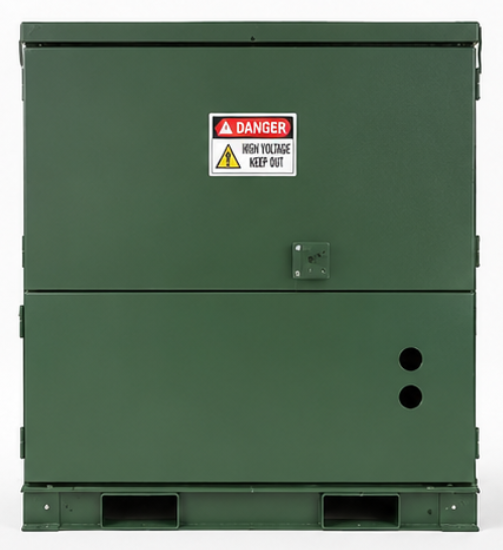

Pad Mounted ZGD Series Single Phase Oil Immersed Transformer

2026年6月26日High Voltage Product 8050

Available Certifications CE / UL Availability depends on model and configuration.

Overview

Pad Mounted ZGD Series Single Phase Oil Immersed Transformer is a ground-mounted single-phase distribution transformer designed for medium-voltage power distribution systems. It is mainly used to step down medium-voltage electricity from utility distribution lines to low-voltage power for residential communities, commercial facilities, public utilities, light industrial loads, rural distribution networks, and outdoor electrical service points.

Product Advantages

UL Listed Transformer for International ProjectsThe Pad Mounted ZGD Series Single Phase Transformer is included in the UL certified oil transformer product list.

Ground-Mounted Pad InstallationThe transformer is designed for pad mounted installation.

Suitable for Single-Phase Distribution SystemsThis product is designed for single-phase power distribution.

Oil Immersed Cooling and InsulationThe transformer uses oil as the insulation and cooling medium.

Typical Specifications

Phase	Single phase
Installation Type	Ground-mounted / pad-mounted installation
Capacity Coverage	Max 250kVA
High Voltage Coverage	11kV–17kV
Cooling / Insulation Medium	Transformer oil
Reference Standards	IEEE C57.12.00, IEEE C57.12.28, IEEE C57.12.90, etc.

Typical configuration only. Final ratings are confirmed against project requirements.

Applications

Pad Mounted ZGD Series Single Phase Oil Immersed Transformer is widely used in outdoor single-phase distribution systems. It is designed for applications where ground-mounted installation is preferred and where the transformer needs to provide reliable voltage transformation for local low-voltage loads.

LAST: Overhead D Series Single Phase Oil Immersed TransformerNEXT: Pad Mounted ZGS Series I Three Phase Oil Immersed Transformer

Related recommendations

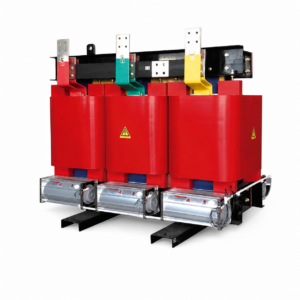

Dry-Type Distribution Transformer
