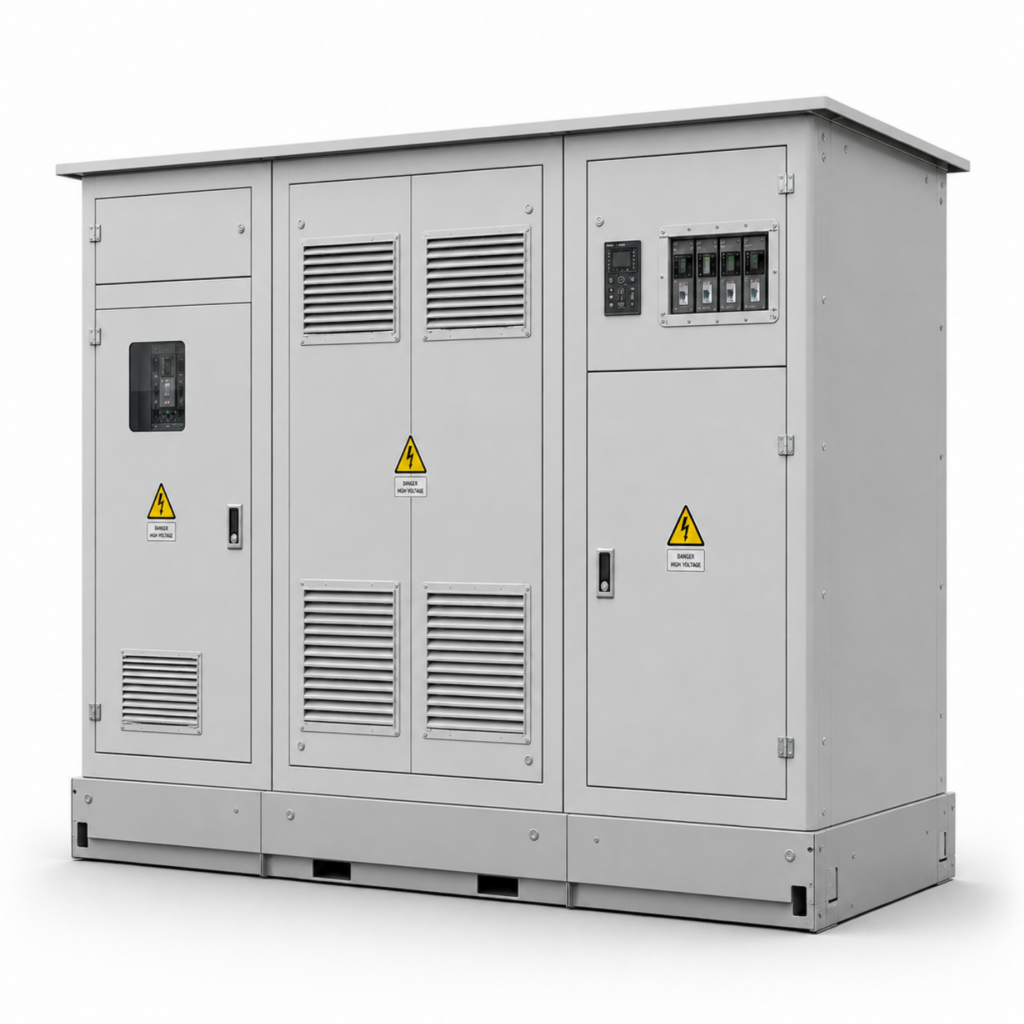

Secondary Unit Substation

2026年6月26日Low Voltage Product 8440

Overview

Secondary Unit Substation is a complete integrated power distribution solution designed to receive medium-voltage power, transform it to low voltage, and distribute it safely to downstream electrical loads. It normally combines medium-voltage switchgear, a distribution transformer, and low-voltage switchgear or switchboard into one coordinated system.

Product Advantages

Complete Integrated Power Distribution SolutionThe Secondary Unit Substation integrates medium-voltage switchgear, transformer, and low-voltage distribution equipment into one coordinated system.

Compact Design and Space SavingThe integrated layout reduces the space required for separate electrical equipment.

Reliable Medium-Voltage Protection and ControlThe medium-voltage section can be equipped with MV switchgear, load interrupter switchgear, or metal-clad switchgear according to project requirements.

Efficient Voltage TransformationThe transformer section converts medium-voltage power to low-voltage power for downstream distribution.

Typical Specifications

Main Function	Medium-voltage receiving, voltage transformation, low-voltage distribution
Rated Voltage	Project-based MV and LV voltage configuration
Transformer Capacity	Customized according to project load demand
Installation Type	Indoor or outdoor installation available
Enclosure Option	Metal enclosure, weather-resistant enclosure, NEMA-type enclosure optional
Protection Functions	Switching, isolation, overload protection, short-circuit protection, grounding, metering

Typical configuration only. Final ratings are confirmed against project requirements.

Applications

Secondary Unit Substation is suitable for projects that require a complete medium-voltage to low-voltage power distribution solution. It can be used as the main power distribution node for industrial, commercial, infrastructure, utility, and energy applications.

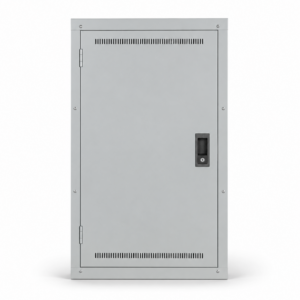

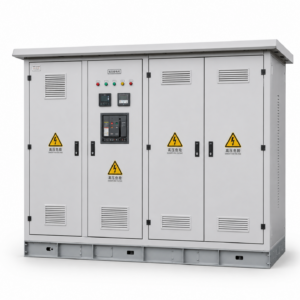

LAST: Panelboard – UL67NEXT: Outdoor Solution
