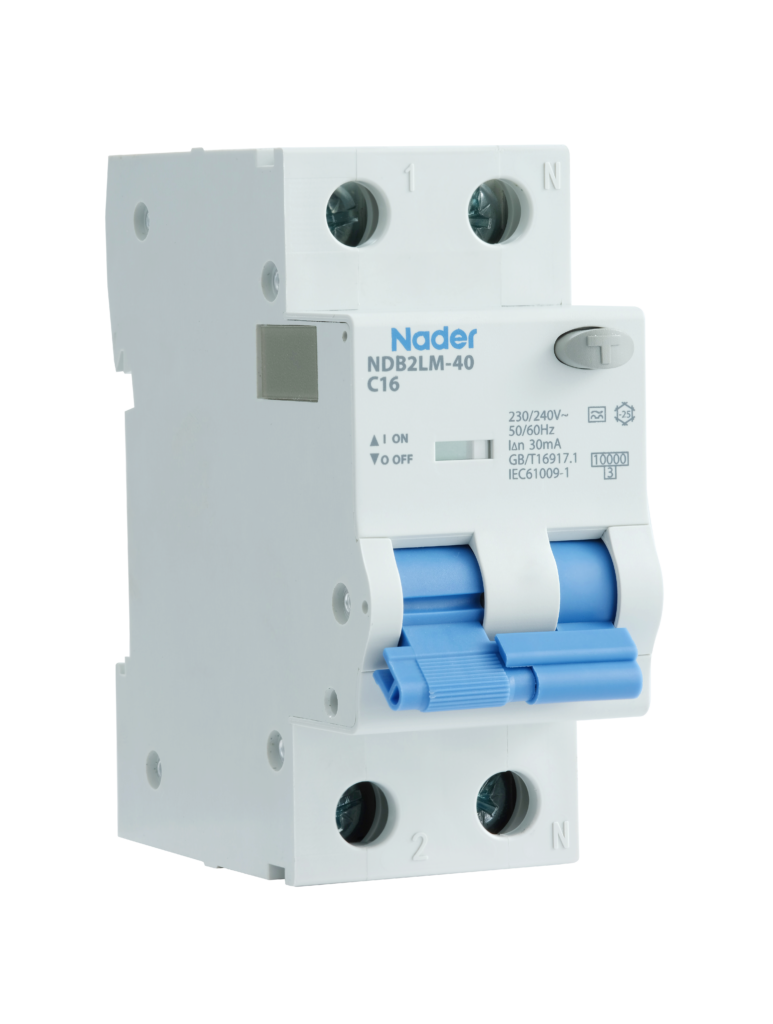

NDB2LM-40

未分类 630

1、Application

The NDB2LM-40 series of residual current action circuit breakers (RCBO) are applicable to the domestic and similar places and some places with a high sensitivity, which are also applicable to laboratories, service industries and small industrial places. They can cut phase and neutral wires at the same time. The neutral line doesn’t provide protection, but can provide:

  • Short circuit protection
  • Overload protection
  • Isolating function
  • Provide personal protection for indirect contact
  • Provide additional personal protection for direct contact
  • Provide the insulation fault protection for the electrical equipment
  • Upper and lower wiring

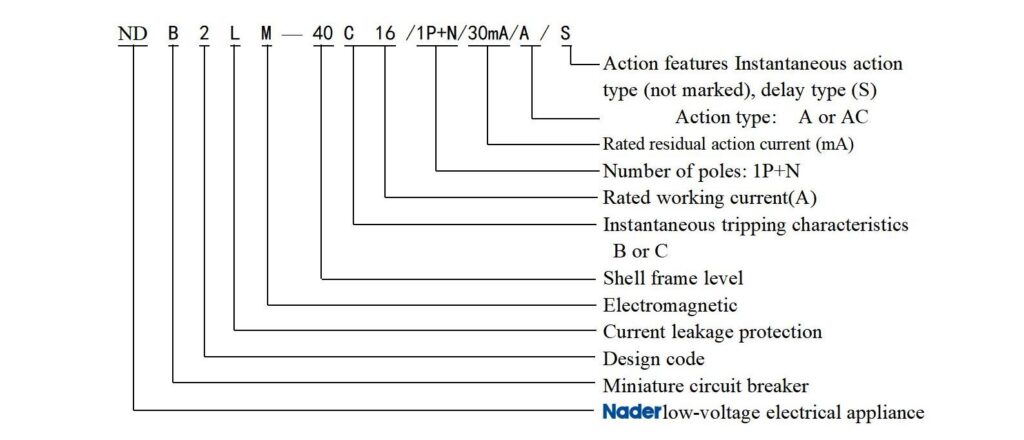

2、Model and implication

3、Main technical parameters

Electrical parameters

  • Residual current protection mode: Electromagnetic
  • Number of poles: 1P+N
  • Rat2e0d21-w03o-2r4king voltage (Ue): AC230V/240V
  • Rated working frequency: 50/60Hz
  • Rated working current (In): 2A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A    Rated insulation voltage: 500V
  • Rated impulse withstand voltage:4KV
  • Power frequency withstand voltage: AC2500V 50Hz 1min
  • Instantaneous tripping characteristics: B, C
    • Rated residual action current (In): 30mA, 100mA, 300mA;
  •  Rated residual current action characteristics:
    • Instantaneous action type: Rated current includes 2A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A
    • Residual current includes 30mA, 100mA, 300mA; Action time: ≤100ms
    • Delay type: Rated current includes 25A, 32A, 40A
    • Residual current includes 100mA, 300mA Action time: 130 ms≤t≤500 ms
  •  Residual current action type:
  • Type AC: Ensure tripping of the residual sinusoidal AC current suddenly applied or rising slowly. Symbol:
  • Type A: Ensure tripping of the residual sinusoidal AC current and residual impulse DC current suddenly applied or rising slowly.Symbol:
  • Rated short-circuit capacity (Icn): 10kA
  • Operating short circuit capability (Ics):7.5KA
  • Rated residual making and breaking capacity (IΔm): 3000A    Mechanical life: 20,000 times
  • Electrical life: 10,000 times
  • Protection class: IP20 for the body protection class    Product certification and Executive Standards:
  • 3C,CB,TUV,CE 认证; IEC 61009-1;2012、GB 16917.1-2014、GB 16917.21-2008
  • Other paramenters
  • Contact position indication: OFF = green; ON = red
  • Storage temperature: Storage ambient temperature: -40℃~+ 80 ℃; storage relative humidity: 20℃ Relative humidity ≤80%;
  • Conductor: (1~16) mm²
  • Busbar thickness: (0.8~ 2) mm
  • Nominal diameter of screw: 5mm
  • Tightening screw torque: Maximum wiring torque: 3.5N•m;
  • Standard wiring torque: 2.0N•m

4、Working conditions

  • Altitude: ≤2000m; For a high altitude, refer to our company’s derating factor table of the miniature circuit breaker;
  • Ambient temperature: -25  ℃~+ 60  ℃, relative humidity ≤95% at 20℃; relative   humidity

≤50% at 40℃ (reference ambient air temperature: 30 ℃, for the temperature exceeding the reference, refer to the temperature derating table of Nader’s miniature circuit breaker);

  • The product can withstand the effects of salt mist and oil mist;
  • The product can be disposed in places that are free from explosive media, media corrosive to metal, insulation damaging gas, and conductive dust;
  •  The product should be installed free from snow and rain.

5、Time-Current curves

B type curve

  • Protect the load with small short-circuit current (such as non-inductive or micro-inductive circuit)
  • Rated current: 2A~40A

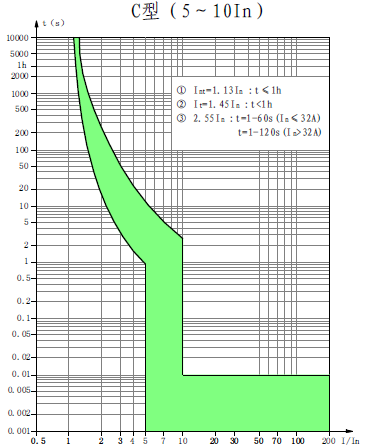

  • Tripping characteristics: Instantaneous tripping range 3In~5In C type curve
  • Protect the conventional load and distribution cable    Rated current: 2A~40A
  • Tripping characteristics: Instantaneous tripping range 5In~10In

6、Outline and installation dimensions

7、Installation method

Based on the modular structure, it can be easily installed on the TH35mm×7.5 standard guide.

8、Packaging and storage

Maximum packaging quantity (7 sets/box, 6 pieces/box). The packaged products should be stored in a warehouse with the air ventilation where the air is relatively dry and the relative air humidity no more than 80% at 20°C and the temperature between -40℃ and +80℃. The products shall be stored with the external magnetic field no more than 5 times the geomagnetic field in any direction (no strong magnetic field appears around it). No acidic, alkaline or other corrosive gas exists in the ambient air. Under the conditions above, the storage period shall be no more than three years since the manufacturing date.

9、Environment

All parts meet the RoHS requirements

10、Accessory list and installation

  • OF2 auxiliary contact: mount on the left side of MCB to indicate the tripping status of the associated MCB.
  • SD2 alarm contact: mount on the left side of MCB to indicate the fault tripping status of the associated MCB
  • MX+OF2 shunt tripping device: mount on the left side of MCB to remotely control MCB     NGQ2( A) Undervoltage  tripping  device:   mount on the left side of MCB, realize single-phase overvoltage, undervoltage, under-voltage protection function
  • Tm2 electric operating mechanism:mount on the left side of MCB to breaker on-off control Tm2GQ Since multiple undervoltage: mount on the left side of MCB ,when in the light
  • over-voltage or under-voltage, on line protection
  • Busbar: It is a modular accessory in the family of NDB2LM-40 products, which can be applicable to connection between in-phase inlet wire ends of multiple circuit breakers or between in-phase terminal equipment as a universal standard accessory.

11、Notices

  • A user must be responsible for addressing a product issue that occurs because the user disassembles the product without approval;
  • Wiring must be reliable to prevent the malfunction of the leakage circuit breaker or terminal,burning damage due to the abnormal heat generation on the terminal;
  • Und20e2r1-0t3h-2e4 energized operation state, do not touch the exposed portion of the uninsulated parts on the circuit breaker with bare hand;
  •  Do not commission the characteristics of the circuit breaker randomly; the manufacturer shall not be responsible for any quality problem caused;
  • Carry out a monthly stimulated test on the current leakage. Namely, press the test button to make the circuit breaker act so as to test proper operation of the circuit breaker, and replace the abnormal products in a timely manner.
