Panelboard – UL67, also known as a Low Voltage Distribution Panelboard, is an important low-voltage electrical distribution product used to distribute power from an upstream switchboard, switchgear, transformer, or main distribution panel to multiple branch circuits. It is commonly used in commercial buildings, residential buildings, industrial facilities, schools, hospitals, office buildings, public infrastructure, and other low-voltage power distribution systems.
| Standard Reference | UL67-oriented design |
|---|---|
| Breaker Mounting | Bolt-on, rail-type bolt-on, plug-on, or plug-in options |
| Rated Voltage | Low-voltage system, project-based configuration |
| Rated Current | Customized according to project requirements |
| Protection Design | Branch circuit protection, overload protection, short-circuit protection |
| Enclosure Type | Wall-mounted or floor-mounted enclosure according to size and installation condition |
Typical configuration only. Final ratings are confirmed against project requirements.
Panelboard – UL67 is widely used in low-voltage electrical distribution systems where multiple branch circuits need to be protected, organized, and distributed. It is commonly installed downstream of transformers, LV switchgear, LV switchboards, or main distribution boards.
1. Applicable Scope and Purpose of Circuit Breaker The NDM2(X)-125 molded case circuit breaker (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50/60Hz, the working voltage of AC690V and workin...
Ayrıntıları görüntüle

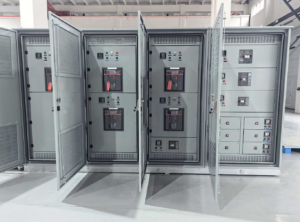

LV Switchboard, also known as UL 891 Low Voltage Switchboard, is an important low-voltage power distribution product used to receive and distribute electrical power from transformers, generators, low-voltage switchgear, or other power sources to ...
