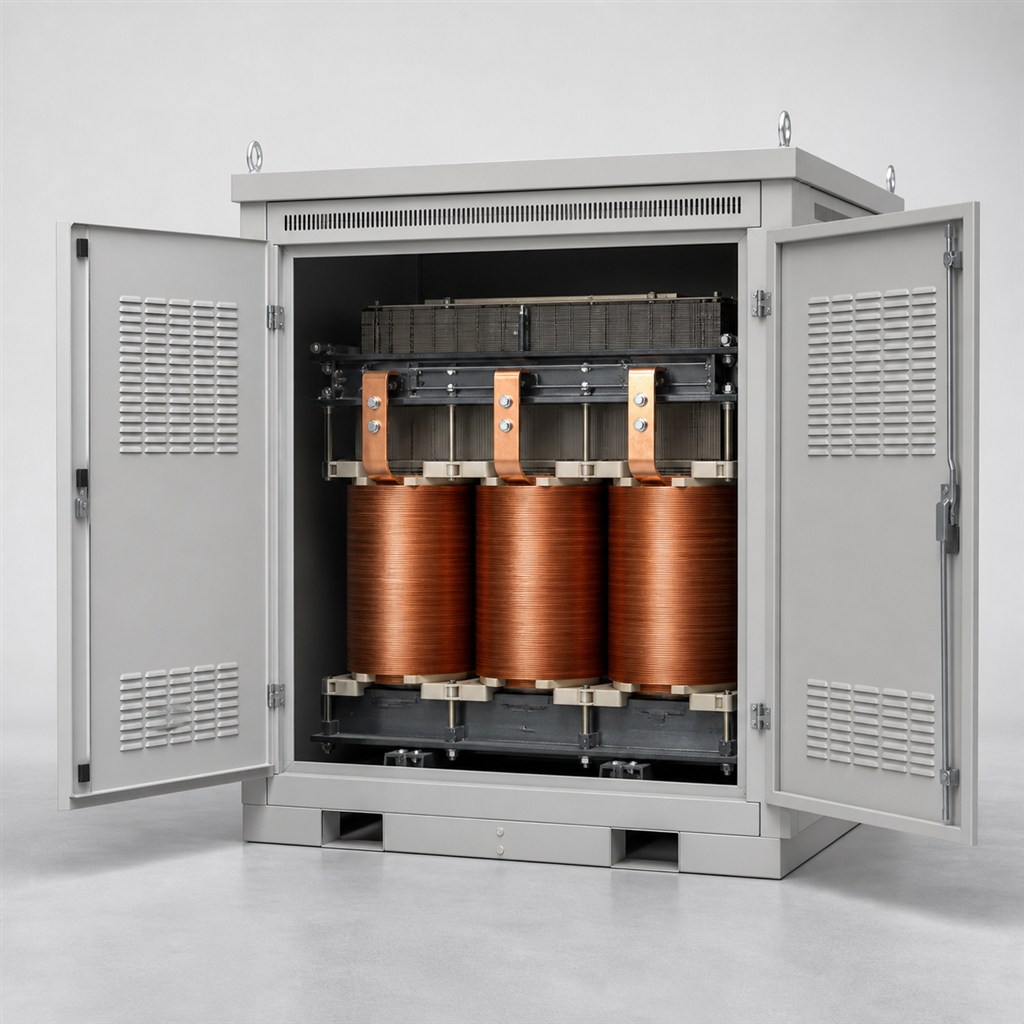

Three Phase Dry-Type Isolation Transformer

2026/08/20High Voltage Product 230

Available Certifications CE Availability depends on model and configuration.

Overview

This three phase dry-type isolation transformer provides galvanic separation between the supply and connected equipment while adapting the voltage where required. Its air-cooled construction is well suited to indoor installations that value clean operation, accessibility and flexible enclosure choices.

Product Advantages

Electrical SeparationSeparate primary and secondary windings improve circuit isolation and system coordination.

Dry ConstructionThe air-cooled design avoids insulating liquid and supports clean indoor installation.

Voltage FlexibilityInput, output, vector group and shielding can be selected for the application.

Compact IntegrationOpen-frame and enclosed versions fit control rooms, production lines and equipment packages.

Typical Specifications

Rated Capacity	5–500 kVA typical
Input Voltage	220–600 V typical
Output Voltage	Project-specific
Frequency	50 or 60 Hz
Cooling	AN / AF
Enclosure	Open frame or protected cabinet

Typical configuration only. Final ratings are confirmed against project requirements.

Applications

Common uses include CNC machinery, automation systems, data and communication equipment, medical-support systems, test benches and commercial power conditioning. Final protection and shielding options depend on the connected load.
