View details1、Application Scope and Purpose

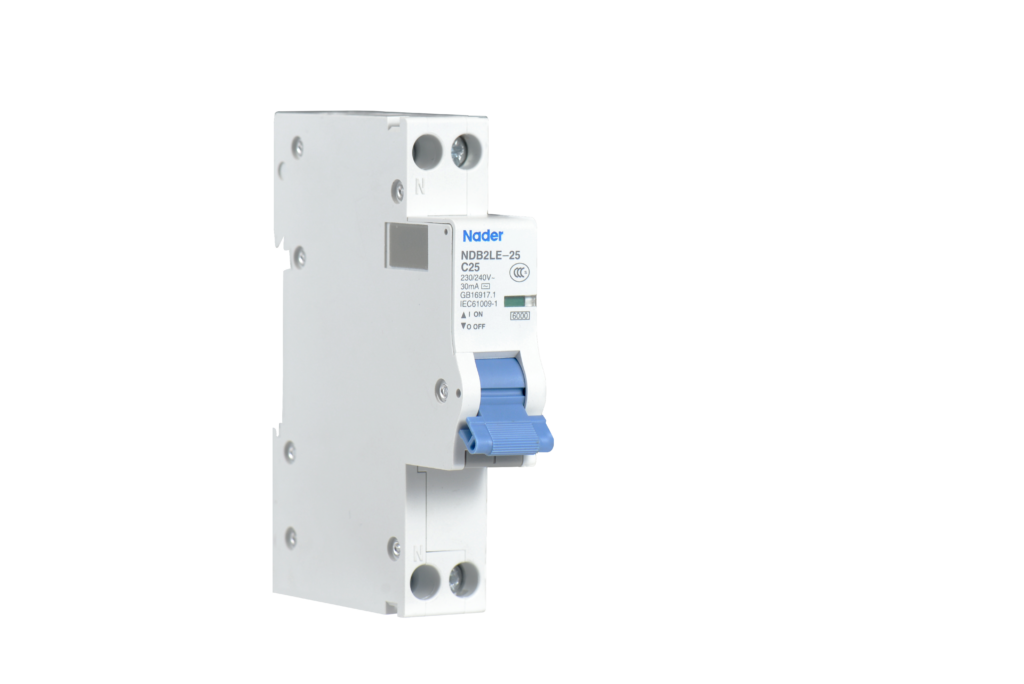

The NDB2LE-25 series of residual current action circuit breakers provide the ground leakage, direct or indirect electric shock by human body and other faults protection, which are applicable to the low-voltage terminal distribution in the industry, civil buildings, energy, communication, infrastructure and other fields.

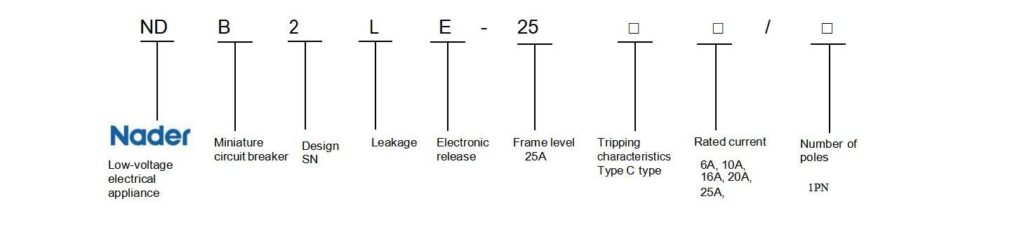

2、Model and implication
3、Main technical parameters
○GB/T 16917.1、IEC 61009-1、GB/T16917.22、IEC61009-2-2
4、Working conditions
●Altitude:≤2000m
●Ambient temperature:-25℃~+55℃
●Wet heat resistance:≤95%
●Pollution level:2

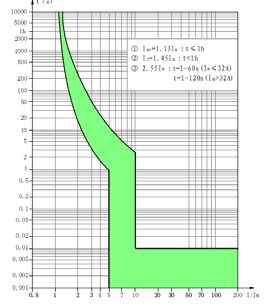

5、Time-Current curves
C curve(5~10)In

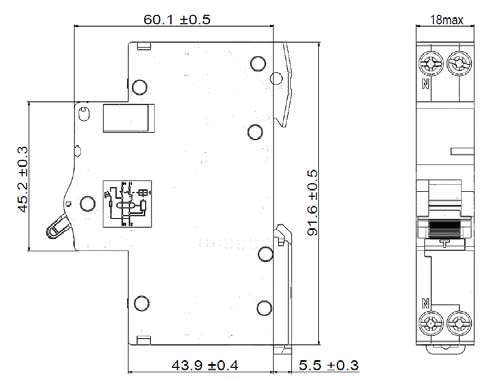

6、Outline and installation dimensions
7、Installation method
It can be easily installed on the TH35mm×7.5 standard guide
8、Packaging and storage
Maximum packaging quantity are 12 pieces/box. The packaged products should be stored in a warehouse with the air ventilation and the relative humidity no more than 80% and the temperature between -30℃ and +70℃. No acidic, alkaline or other corrosive gas exists in the ambient air in the warehouse. Under the above conditions, the storage period shall be no more than three years since the manufacturing date.
9、Environment
●Comply with the requirements of RoHS directives.
10、Accessory list and installation
No 12、Notices
misunderstanding of the product quality or damage to the circuit board;
