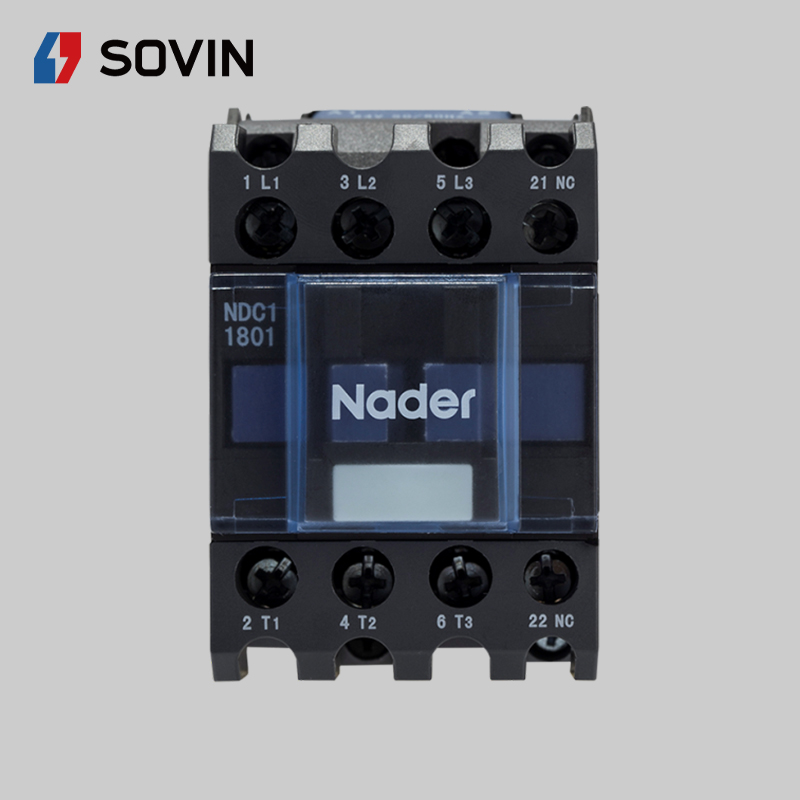

NDC1(Z)-18 AC Contactor, which used in 50Hz(60Hz) AC circuit with the rated voltage of 1000V. It is used in AC-3 type, with the rated working voltage of 415V and rated working current of 18A, to realize distant connection and disconnection of the circuit and constant starting to control AC motors.

It can also be used with thermal relay and electric protecting devices to protect circuit against possible overload.

Compatible Products for Schneider LC1N


  • Rated Working Current Ie: 18A @ 415V AC-3

12A @ 690V AC-3

7.7A @ 415V AC-4

3.8A @ 690V AC-4

  • Set Heating Current Ith: 32A
  • Rated Working Voltage (V): 380/415, 660/690
  • Coil Rated Controlling Voltage Us:

24/36/48/110/127/200/220/230/240/277/380/400/415/440/480 VAC (50/60Hz)

24/48/80/110/220 VDC

  • Impulse Withstand Voltage Uimp: 8kV
  • Poles: 3P
  • Electrical Life: 1000000 times, frequency 1200 times max/h @ AC-3

200000 times, frequency 300 times max/h @ AC-4

  • Rated Insulation Voltage: 1000V
  • Coil Pick-up Voltage @40℃: 0.65Us~1.1Us (AC) 0.85Us~1.1Us (DC)
  • Coil Drop-up Voltage : 0.20Us~0.60Us (AC) 0.10Us~0.60Us (DC)
  • Coil Power 50/60Hz VA: Pick-up 65VA; Maintain 8VA
  • DC Coil Power W: Pick-up 11VA; Maintain 11VA
  • Mechanical Life: 10000000

Normal Working conditions:

  • The Standard Operating Temperature:-25℃~+40℃
  • Storage: -60℃~+80℃
  • Altitude: ≤3000m. Less than 5000m for plateau type product
  • Under normal use, the limit humidity should not exceed 95% and last more than 24 hours, and measures to prevent condensation should be taken. Environmental humidity is correlated with temperature. When the ambient temperature is high, the relative humidity is required to be lower. If the temperature exceeds +40℃, the relative humidity is not more than 50%.

Packaging & Storage

Each product is packed separately and put into the carton box. The products should be stored at temperature no higher than +80℃, no lower than -60℃. No acidity, alkaline or other corrosive gas.
