1. Applicable Scope and Purpose

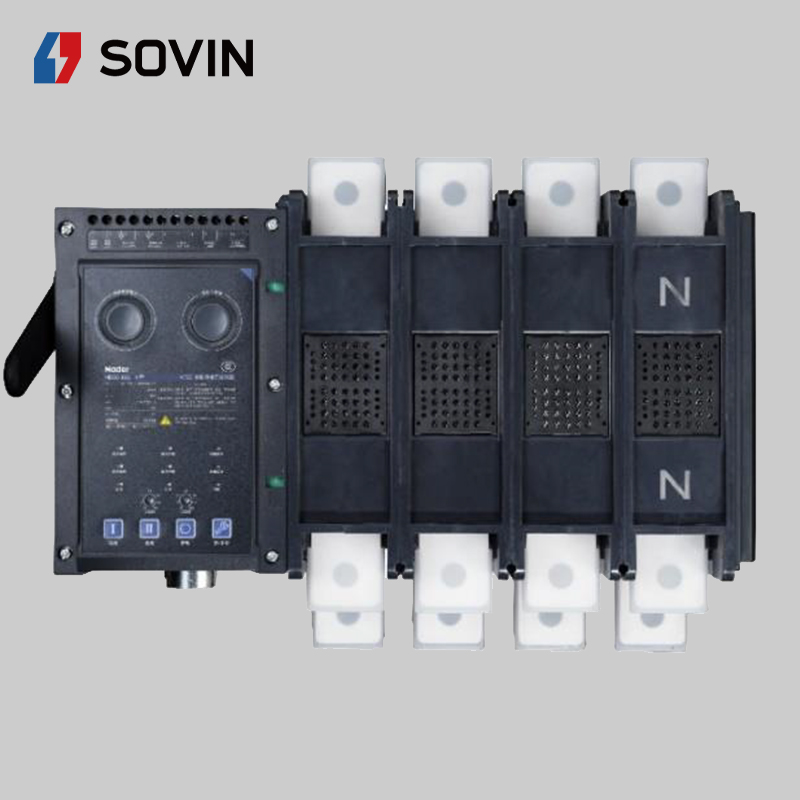

The NDQ3-800 P-grade ATSE are applicable for sites with the AC voltage below AC380V.AC400V.AC415V and the rated frequency of 50Hz. This product complies with the GB14048.1-2012 and GB/T14048.11-2016 standards in accordance with Code for Fire Protection of High-rise Civil Buildings, Code of Design on Building, Design Guidelines on Emergency Lighting, Code for Electrical Design of Civil Buildings etc.

This product mainly applies to the compulsory level I load, which is widely used in important places that require the continuous power supply, such as fire protection, telecommunications, hospitals, hotels, urban rail transits, high-rise buildings, industrial assembly lines and TV stations. It adopts the network source, self-starting generator set and battery set as the main and standby power supplies.

2. Specification and Model Description

ND  Q  3 – X  X  X/  X  X  X  X

SNSN DescriptionNDQ3
1Enterprise codeND Nader low-voltage apparatus
2Product codeQ ATSE
3Design SN3
4Rated current of frame800
5Structure formZ-Integral type; F: Split type
6Rated working current630 700 800
7Number of poles3-3P 4-4P
8Control modeR: Automatic switching and automatic recovery mode; S: Automatic switching and non-automatic recovery mode; F: Grid -generator mode
9Switch position (structure)II: two-segment, Ⅲ: three-segment
10Controller typeBlank type Note 1, N-type Note 2, D-type, Note 3

1    2  3  4   5  6   7   8  9  10

Note 1: blank type means the integral or split type (only two segments).

Note 2: N-type represents three-segment type (for both integral and split types), and communication type needs the special contract review (only the integral type)

Note 3: D-type is limited to the split type (for both two segments and three segments), it is default with automatic change and automatic recovery in the factory setting, and the customer may set the control mode

3. Main technical parameters

Rated working voltage Ue: AC380V.AC400V.AC415V

Rated Frequency: 50Hz

Rated insulation voltage Ui: AC800V

Rated impulse withstand voltage Uimp: 8kV

Utilization category: AC-33iB

Short time withstand current Icw: 16kA/60ms

Rated short circuit making capacity Icm: 32kA

Rated limited short-circuit current Iq: 120 kA

Contact switching time:: ≤150ms

Switching action time: : ≤400ms

Mechanical life: 2500 times

Electrical life: 500 times
